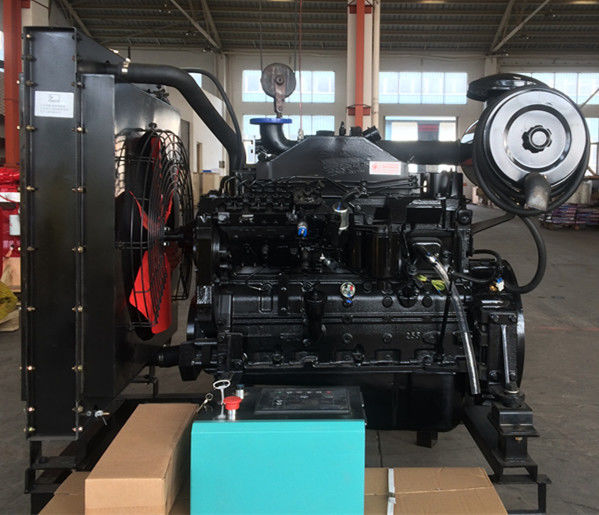

Water Cooled 5.9 L Cummins Turbo Diesel Engine 180HP ISO14001 Certification

Water Cooled 5.9 L Cummins Turbo Diesel Engine 180HP ISO14001 Certification

Water Cooled 5.9 L Cummins Turbo Diesel Engine 180HP ISO14001 Certification

Product Details:

Place of Origin: Hubei, China mainland
Brand Name: Dongfeng Cummins
Certification: ISO/16949, ISO14001
Model Number: 6BTA5.9-C180

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Wrap around with plastic bags firstly, and then reinforced with wooden case for outer packing.
Delivery Time: 3-10 Working Days After Received Your Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Units Per Month
Contact Now
Detailed Product Description
Condition: New Rated Power: 112KW
Speed: 2200RPM Displacement: 5.9L
Stroke: 4 Stroke Warranty: 24 Months
Dimension(L*W*H): 1100*765*985mm Weight: 550KG

Water Cooled 5.9 L Cummins Turbo Diesel Engine 180HP ISO14001 Certification



Features and benefits:



1. Genuine Cummins industrial diesel engine.
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection.
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler.
4. Electronic start.
5. Low discharge, and low fuel consumption.

6. Excellent after-sales service and sufficient spare parts supplying.

7. Easy installation and ready access for routine maintenance.



Specifications:



Engine type 6BTA5.9-C180
Engine family B
Engine manufacturer dongfeng cummins
Gross weight 453kg
Fuel diesel oil
Aspiration Turbocharged and aftercooled
Cylinders 6
Displacement 5.9L
Bore 102mm
Stroke 120mm
Emission standard 3
Rated power 132kw
Rated Speed 2200rpm
Max HP 180hp
Peak Torque /Speed 750/1300(N.m/rpm)
Valve 2 pcs/cylinder



Cummins Diesel Engine Model List:



Cummins Diesel Engine Model List
Model Rated power/Speed PeakTorque/Speed
(kW/rpm) (N.m/rpm)
4BT3.9-C80 60/2200 330/1500
4BT3.9-C100 74/2400 330/1500
4BT3.9-C105 77/2800 330/1500
4BTA3.9-C80 82/2200 360/1400
4BTA3.9-C100 74/2200 410/1500
4BTA3.9-C110 82/2200 460/1500
4BTA3.9-C125 93/2200 475/1500
4BTA3.9-C130 97/2500 475/1500
6BT5.9-C130 97/2200 560/1500
6BT5.9-C150 112/2400 580/1500
6BTA5.9-C150 112/2200 670/1300
6BTA5.9-C170 125/2300 630/1400
6BTA5.9-C180 132/2200 750/1300
6CTA8.3-C195 145/1900 820/1500
6CTA8.3-C215 160/2200 908/1500
6CTA8.3-C230 172/2200 1003/1500
6CTA8.3-C240 179/2200 1028/1500
6CTA8.3-C260 194/2200 1135/1500
6LTAA8.9-C295 220/2100 1350/1400
6LTAA8.9-C300 225/2200 1268/1000
6LTAA8.9-C325 239/2200 1250/1500
6LTAA8.9-C340 250/2200 1380/1500
6LTAA8.9-C360 264/2200 1480/1500
NTA855-P400 298/2100 1627/1400
NTA855-P270 201/1800 1120/1500
NTA855-P360 269/2100 1464/1400
NTA855-P300 224/1500
NTA855-P470 351/1500
NTA855-P450 336/1800
NTA855-P500 373/1800
KTA19-P525 392/2100 2136/1500
KTA19-P500 373/1500
KTA19-P600 448/2100 2237/1500
KTA19-P680 507/1500
KTA19-P700 522/1800
KTA19-P750 559/1800
KT38-P780 582/1800 3481/1300
KT38-P830 619/1500
KTA38-P980 731/1500
KTA38-P1300 970/1500
KT38-P1000 746/1800
KTA38-P1200 895/1800
KTA38-P1400 1045/1800



Description:



B Series Diesel Engine:



1. High fuel efficiency.



2. Compacted yet durable and dependable engine.



3. Advanced design and manufacturing make the engine delivers superior performance and lower cost than competitive engines.



4. Excellent cold start performance with improved 6.6kW starter and intake air heater.



5. Excellent performance and advantage adopt advanced design to achieve higher horsepower and lower weight, horsepower per liter reached 22.4kW/L.



Packaging & Delivery



Packaging Details:



1. Packed in wooden case, 1 unit/wooden case.

2. Packing sieze: 1100*900*1300mm



Delivery Detail:



2-3 days for 1-3 units; 7-10 days for 4-20 units.
