Xiangyang Xinsheng Power Technology Co.,Ltd.
Hope our service can make your working easy!
Place of Origin: | Hubei, China mainland |
Brand Name: | Dongfeng Cummins |
Certification: | ISO/16949, ISO14001 |
Model Number: | 6LTAA8.9-C300 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Wrap around with plastic bags firstly, and then reinforced with wooden case for outer packing. |
Delivery Time: | 3-10 Working Days After Received Your Payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 Units Per Month |
Usage: | Stationary Pumps | Rated Power: | 225KW |
---|---|---|---|
Speed: | 2200RPM | Engine Type: | Fuel |
Displacement: | 8.9L | Warranty: | 24 Months |
Dimension(L*W*H): | 1404.9*767.5*1178.7mm | Weight: | 750KG |

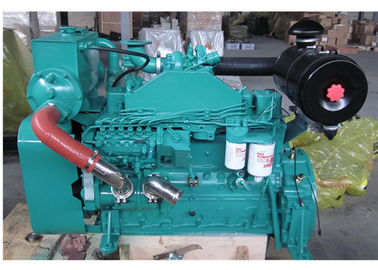

Six Cylinder Stationary 300 HP Diesel Engine , Heavy Duty Diesel Engine
Features and benefits:
1. Genuine Cummins industrial diesel engine.
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection.
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler.
4. Machinery or electronic governing.
5. Fuel injection pump.
6. Electric motor starting system.
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner.
8. Low discharge, and low fuel consumption.
9. Installed conveniently and maintain easily.
Specifications:
Engine type | 6LTAA8.9-C300 |
Engine family | C |
Engine manufacturer | dongfeng cummins |
Gross weight | 637kg |
Fuel | diesel oil |
Aspiration | turbocharged and charge air cooled |
Cylinders | 6 |
Cylinder arrangement | vertically |
Displacement | 8.9L |
Emission standard | 3 |
Rated power | 225kw |
Rated Speed | 2200rpm |
Max HP | 300hp |
Peak Torque /Speed | 1268/1000(N.m/rpm) |
Valve | 4pcs/cylinder |
Cummins Stationary Diesel Engine Model List:
Cummins Stationary Diesel Engine Model List | ||
Model | Rated power/Speed | PeakTorque/Speed |
(kW/rpm) | (N.m/rpm) | |
4BT3.9-C80 | 60/2200 | 330/1500 |
4BT3.9-C100 | 74/2400 | 330/1500 |
4BT3.9-C105 | 77/2800 | 330/1500 |
4BTA3.9-C80 | 82/2200 | 360/1400 |
4BTA3.9-C100 | 74/2200 | 410/1500 |
4BTA3.9-C110 | 82/2200 | 460/1500 |
4BTA3.9-C125 | 93/2200 | 475/1500 |
4BTA3.9-C130 | 97/2500 | 475/1500 |
6BT5.9-C130 | 97/2200 | 560/1500 |
6BT5.9-C150 | 112/2400 | 580/1500 |
6BTA5.9-C150 | 112/2200 | 670/1300 |
6BTA5.9-C170 | 125/2300 | 630/1400 |
6BTA5.9-C180 | 132/2200 | 750/1300 |
6CTA8.3-C195 | 145/1900 | 820/1500 |
6CTA8.3-C215 | 160/2200 | 908/1500 |
6CTA8.3-C230 | 172/2200 | 1003/1500 |
6CTA8.3-C240 | 179/2200 | 1028/1500 |
6CTA8.3-C260 | 194/2200 | 1135/1500 |
6LTAA8.9-C295 | 220/2100 | 1350/1400 |
6LTAA8.9-C300 | 225/2200 | 1268/1000 |
6LTAA8.9-C325 | 239/2200 | 1250/1500 |
6LTAA8.9-C340 | 250/2200 | 1380/1500 |
6LTAA8.9-C360 | 264/2200 | 1480/1500 |
NTA855-P400 | 298/2100 | 1627/1400 |
NTA855-P270 | 201/1800 | 1120/1500 |
NTA855-P360 | 269/2100 | 1464/1400 |
NTA855-P300 | 224/1500 | |
NTA855-P470 | 351/1500 | |
NTA855-P450 | 336/1800 | |
NTA855-P500 | 373/1800 | |
KTA19-P525 | 392/2100 | 2136/1500 |
KTA19-P500 | 373/1500 | |
KTA19-P600 | 448/2100 | 2237/1500 |
KTA19-P680 | 507/1500 | |
KTA19-P700 | 522/1800 | |
KTA19-P750 | 559/1800 | |
KT38-P780 | 582/1800 | 3481/1300 |
KT38-P830 | 619/1500 | |
KTA38-P980 | 731/1500 | |
KTA38-P1300 | 970/1500 | |
KT38-P1000 | 746/1800 | |
KTA38-P1200 | 895/1800 | |
KTA38-P1400 | 1045/1800 |
Description:
B Series Diesel Engine:
Cummins L Series Engine Advantages:
1. 24-Valve Cylinder Head: for increased air flow, improved low-end torque and response, higher power density, improved fuel consumption and improved emissions.
2. Heavy Duty Features: replaceable wet liners, roller followers, 2-piece steel articulated pistons, by-pass oil filtrantion and targeted piston cooling.
3. Durable and dependable: articulated pistons with a forged steel crown and an aluminum skirt for high durability. Excellent performance and advantage: adopt advanced design to achieve higher horsepower and lower weight, horsepower perliter reached 30.0kW/L.
Applications:
Cummins stationary diesel engines are apply for water pump sets, fire pump sets and other stationary machines.
Packaging & Delivery
Packaging Details:
1. Packed in wooden case, 1 unit/wooden case.
2. Packing sieze: 1100*900*1300mm
Delivery Detail:
2-3 days for 1-3 units; 7-10 days for 4-20 units.
