Xiangyang Xinsheng Power Technology Co.,Ltd.
Hope our service can make your working easy!
Place of Origin: | Xiangyang city,Hubei, China mainland |
Brand Name: | Cummins |
Certification: | ISO 14001:2004 |
Model Number: | 6BTA5.9-C180 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box with plastic bag inside or Custimized as client's request |
Delivery Time: | 7 working days on reciept of yr advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 units/per month |
Model Number: | 6BTA5.9-C180 | Cold Style: | Water-cooled |
---|---|---|---|
Fule: | Diesel | Rated Power: | 180HP/2500R/MIN |
Dry Weight: | 443kg | Bore*Stroke: | 102mm*120mm |
Usage: | Industrial,Construction,Pumps | Cell/Wsapp: | +86+15872306245 |
Condition: | New From Cummins Factory Or Used |

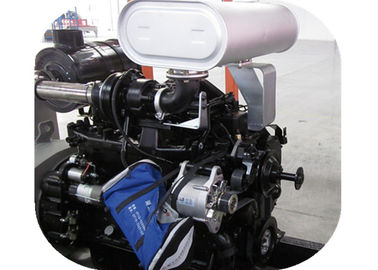

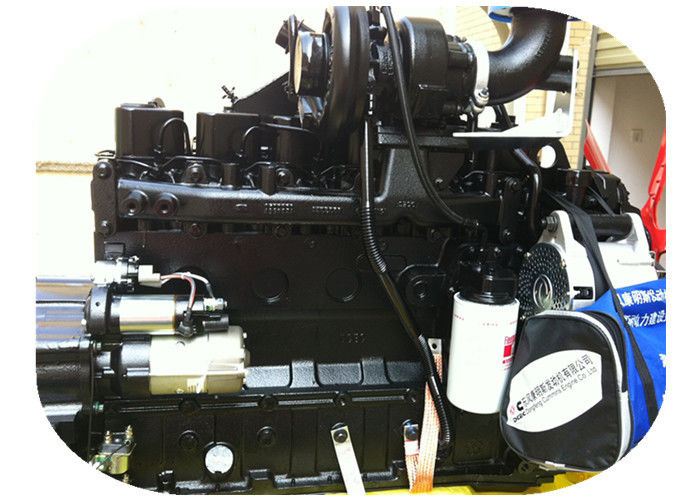

Water Cooled 6bta5.9-C180 Cummins Diesel Motors For Industrial Machinery,Water Pump ,Fire Pump
Main Technical Data:
Model :6BTA5.9-C180
Type: Vertical, in-line,water-cooled,four stroke
Intake way :Turbo-charging & Inter-cooled
Cylinder-BorexStroke(mm): 6-102x120
Displacement of Piston :5.9
Compression Rate :17.5:1
Rated Power/RPM(kw/r/min): 132/1800
Min Fuel Consumption g/(kw.h) :≤200
Type of Governor: Mechanical governor
Governing Rate :≤5%
Oil Consumption Rate g/(kw.h): ≤1.0
Oil Capacity(L) :14~16
Starting Type :Electric start
Noise limit db(A): ≤98
Applicable Altitude(m): ≤2500
Dimension(LxWxH)(mm) :1600x900x1330
Net Weight of Engine(kg): 600
Cummins Industrial Diesel Engine Model List:
Cummins Diesel Engine Model List | ||
Model | Rated power/Speed | PeakTorque/Speed |
(kW/rpm) | (N.m/rpm) | |
4BT3.9-C80 | 60/2200 | 330/1500 |
4BT3.9-C100 | 74/2400 | 330/1500 |
4BT3.9-C105 | 77/2800 | 330/1500 |
4BTA3.9-C80 | 82/2200 | 360/1400 |
4BTA3.9-C100 | 74/2200 | 410/1500 |
4BTA3.9-C110 | 82/2200 | 460/1500 |
4BTA3.9-C125 | 93/2200 | 475/1500 |
4BTA3.9-C130 | 97/2500 | 475/1500 |
6BT5.9-C130 | 97/2200 | 560/1500 |
6BT5.9-C150 | 112/2400 | 580/1500 |
6BTA5.9-C150 | 112/2200 | 670/1300 |
6BTA5.9-C170 | 125/2300 | 630/1400 |
6BTA5.9-C180 | 132/2200 | 750/1300 |
6CTA8.3-C195 | 145/1900 | 820/1500 |
6CTA8.3-C215 | 160/2200 | 908/1500 |
6CTA8.3-C230 | 172/2200 | 1003/1500 |
6CTA8.3-C240 | 179/2200 | 1028/1500 |
6CTA8.3-C260 | 194/2200 | 1135/1500 |
6LTAA8.9-C295 | 220/2100 | 1350/1400 |
6LTAA8.9-C300 | 225/2200 | 1268/1000 |
6LTAA8.9-C325 | 239/2200 | 1250/1500 |
6LTAA8.9-C340 | 250/2200 | 1380/1500 |
6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Our Advantages:
1. Original /OEM quality from Cummins factory and competitive price
2. Professional work team and quick service
3. Strong and standard package
4. Fast and safe delivery
5. Long-time exporting experience in Middle east, Northern Europe, Southeast Asia, North America, Africa, Russia.
6. Clear details photos what you see is what you get
7. Able to develop & produce according to customer specification with technical drawing.
Packaging & Delivery
Packaging Detail:
Packaged By Exporting plywood case,woooden.
Delivery Detail:
Shipped in 7-10 working days after yr advance payment
Besides We also can provide ORIGINAL CUMMINS engines used for Industry, Bus, Marine, Generator Set and water pump. More details, please contact us via email and call. Thanks !
