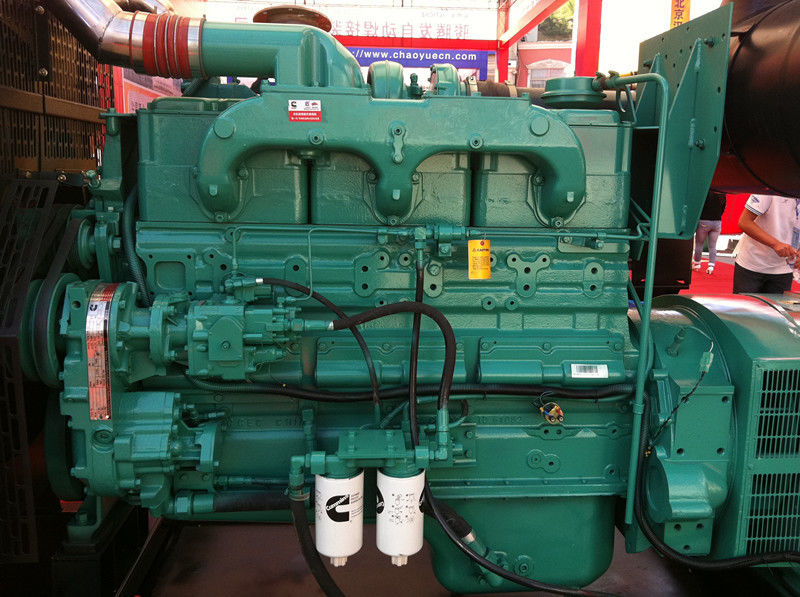

Generator Cummins G Drive Engines , Cummins NTA855 Diesel Engine 60HZ 1800RPM 250KW
 |
Product Details:
| Place of Origin: | Chongqing |
| Brand Name: | Chongqing Cummins |
| Certification: | ISO9001 |
| Model Number: | NTA855-G1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Packaging Details: | Wooden box with plastic bag inside,or per client's requirement |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Units per Month |
Detailed Product Description
| Certification: | ISO9001 | Product Name: | Cummins G Drive Engines |
|---|---|---|---|
| Model: | NTA855-G1 | Engine Speed: | 1800rpm |
| Bore X Stroke: | 140 X 152 Mm | Fuel System: | PT |
Generator Cummins G Drive Engines , Cummins NTA855 Diesel Engine 60HZ 1800RPM 250KW
Specifications of NTA855-G1:
1. Cooling Fan with fan guard and front guard
2. Alternator: Single bearing, IP23, H class
3. 24V Charger
4. Shock Absorber
5.Dry Air Filter. Dual Fuel Filter. Engine Oil Filter.
6. Coolant Filter.
7. MCCB Circuit Breaker
8. Standard Control Panel; ATS for optional
9. Storage Battery and battery line, Exhaust pipe,
10. Corrugated pipe for anti-vibration, Cone Tube,
11. Flange, Muffler
Engine Data:
| Manufacturer | Chongqing Cummins Engine Co., Ltd. | ||||||||||||||||||||||
| Model | NTA855-G1 | ||||||||||||||||||||||
| Engine speed | 1800rpm | ||||||||||||||||||||||
| Engine power | |||||||||||||||||||||||
| ----------------------Standby power | 313 kW | ||||||||||||||||||||||
| ----------------------Prime power | 347kw | ||||||||||||||||||||||
| ----------------------Continuous power | |||||||||||||||||||||||
| Type | 6-cylinder, in-line | ||||||||||||||||||||||
| Aspiration | Turbocharged and Aftercooled | ||||||||||||||||||||||
| Bore X Stroke | 140 X 152 mm | ||||||||||||||||||||||
| Displacement | 14L | ||||||||||||||||||||||
| Fuel system | PT | ||||||||||||||||||||||
| Compression Ratio | 14.5 : 1 | ||||||||||||||||||||||
| Firing Order | 1-5-3-6-2-4 | ||||||||||||||||||||||
Performance characteristics of N series engine:
Super power:
1. Power coverage 185-545 horsepower, maximum torque of 1763 nm.
Low speed torque, fast start, strong climbing ability.
The engine weight is 1250KG, big power to weight ratio.
2. Low fuel consumption and good economy:
Cummins patented technology of PT fuel system, high injection pressure, to ensure good atomization of the engine and full combustion.
3. Efficient Holset exhaust turbocharger can ensure the intake be more fully, improve the efficiency of the engine, further improve combustion and reduce engine fuel consumption.
4. Air to air cooling technology to ensure that the intake is more adequate, and fuel economy is better.
5. Compact structure and convenient maintenance:
Wet cylinder liner can be replaced, heat dissipation effect is better, easier to replace.
All types of parts commonality, high degree of serialization, convenient maintenance.
Our Service:
1. 100% finished products inspection before shipment. Beside customer’s QC, we can help to do inspection and offer report.
2. We can palletize, make fumigation, supervise over loading,take loading photos for you.
3. Offer CO, Form A, Form E, Form F and certificate legalized by concerned embassy
4. One Year warranty for After-service.
