Silent Generator Diesel Engine , Three Phase cummins diesel motor 6CTA8.3-G1 163KW / 1500RPM
 |
Product Details:
| Place of Origin: | Xiangyang city, Hubei, China |
| Brand Name: | Cummins |
| Certification: | ISO/16949, ISO14001 |
| Model Number: | 6CTA8.3-G1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box with plastic bag inside or Custimized as client's request |
| Delivery Time: | 3-7 working days on reciept of yr advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 units/per month |
Detailed Product Description
| Fule: | Diesel | Engine Model: | 6CTA8.3-G1 |
|---|---|---|---|
| Engine Usage: | Generator Set | Frequency: | 50HZ |
| Rated Power: | 163KW/1500RPM | Generator: | Stamford Or Marathon |
| Output Type: | AC Three Phase | Cell/Wsapp: | +86+18827054157 |
Silent Generator Diesel Engine , Three Phase cummins diesel motor 6CTA8.3-G1 163KW / 1500RPM
Engine Specifications:
Model: 6CTA8.3-G1
Air Intake System: Turbocharger
Fuel System: PB/W type fuel pump
Cylinder Arrangement: 6 in line
Displacement: 8.3L
Bore and Stroke: 114×135 mm
Compression Ratio: 17:1
Rated RPM: 1500rpm
Maximum Output Power: 163KW
Governor Type: Mechanical
Exhaust System
Exhaust Gas Flow: 34.7m3/min
Exhaust Temperature: 570℃
Max Back Pressure: 10kPa
Air Intake System
Max Intake Restriction: 6kPa
Burning Capacity: 12.4m3/min
Air Flow: 238m3 /min
Fuel System
100%( Prime Power) Load: 215 g/Kw.h
75%(Prime Power) Load: 211 g/Kw.h
50%(Prime Power) Load: 216 g/Kw.h
100%( Prime Power) Load: 39.7L/h
Oil System
Total Oil Capacity: 23.8L
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 18.9L
Oil Pressure at Rated RPM: 276-414kPa
Cooling System
Total Coolant Capacity: 34L
Thermostat: 82-95℃
Max Water Temperature: 104℃
The list of Genset Engine Models
| Mode | Rated Power(kw/rpm) | Brand |
| 4B3.9-G1 | 24/1500 | Cummins |
| 4B3.9-G2 | 24/1500 | Cummins |
| 4BT3.9-G1 | 36/1500 | Cummins |
| 4BT3.9-G2 | 36/1500 | Cummins |
| 4BTA3.9-G2 | 50/1500 | Cummins |
| 4BTA3.9-G2 | 58/1500 | Cummins |
| 4BTA3.9-G11 | 67/1500 | Cummins |
| 6BT5.9-G1 | 86/1500 | Cummins |
| 6BT5.9-G2 | 96/1500 | Cummins |
| 6BTA5.9-G2 | 106/1500 | Cummins |
| 6BTAA5.9-G2 | 120/1500 | Cummins |
| 6BTAA5.9-G12 | 132/1800 | Cummins |
| 6CTA8.3-G1 | 163/1500 | Cummins |
| 6CTA8.3-G2 | 170/1800 | Cummins |
| 6CTAA8.3-G2 | 183/1500 | Cummins |
| 6LTAA8.9-G2 | 220/1500 | Cummins |
| 6ZTAA13-G2 | 390/1800 | Cummins |
| 6ZTAA13-G3 | 340/1800 | Cummins |
| QSZ13-G2 | 500/1500 | Cummins |
Test before shippment
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and
10% overload.
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-
240V. Any special voltage is also available as cilent's request.

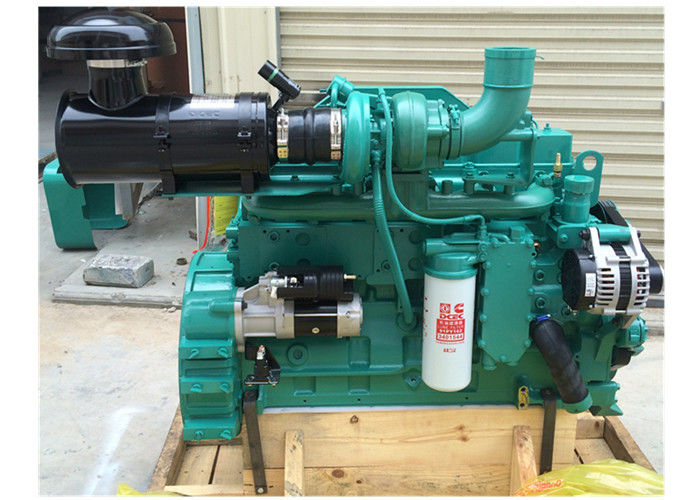

Photo of 6CTA8.3-G1:
Packing & Shipping &Warranty
- Packing: Wooden Case, Plywood or Metal Case.
- Delivery Time: Less than 15 working days after receiving prepayment.
- Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
