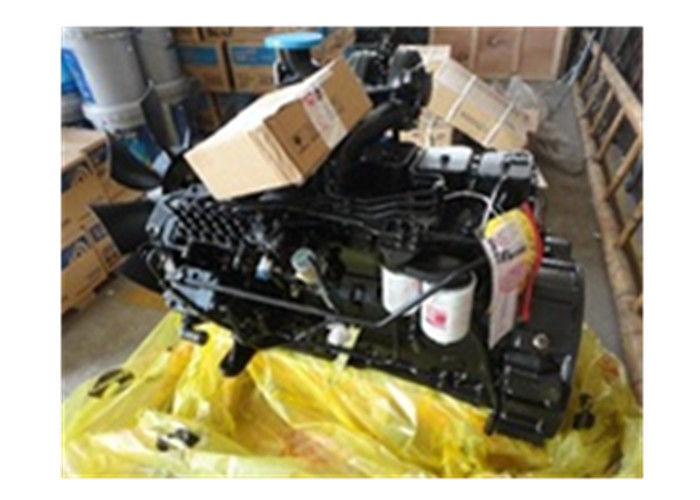

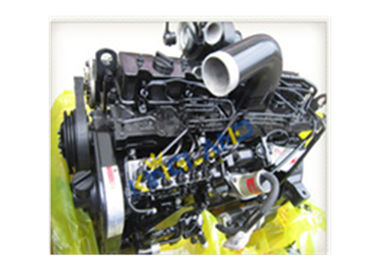

Dongfeng Cummins Water Cooled ,Industrial Diesel Engine 6BTAA5.9-C130
 |
Product Details:
| Place of Origin: | Xiangyang City,Hubei Province,China |
| Brand Name: | Cummins |
| Certification: | ISO 14001:2004 |
| Model Number: | 6BTAA5.9-C130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box with plastic bag inside or Custimized as client's request |
| Delivery Time: | 3-7 working days on reciept of yr advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 units/per month |
Detailed Product Description
| Engine Brand: | Cummins | Engine Model: | 6BTAA5.9-C130 |
|---|---|---|---|
| Fule: | Diesel | Displacement: | 5.9L |
| Usage: | Industrial / Construction Machine | Dimension: | 867mm*544mm*988mm |
| Cold Style: | Water-cooled | Cell/Wsapp: | +86+15872306245 |
| Engine Condition: | New From Cummins Original Factory |
6B Series Xiangyang Dongfeng Cummins Industrial Diesel Engine Assy 6BTAA5.9-C130 For Construction Machine
Specification:
Engine Model: 6BTAA5.9-C130
Engine Type: 6 Cylinders, in Line
Displacement: 5.9 L
Rated Speed: 2200 rpm
Rated Power: 97 kW(130 HP)
Max. Torque/Speed: 580 N.m @1500 rpm
Aspiration Method: Turbocharged-Intercooled
Emission Standard: Euro Ⅱ
Fuel Consumption: 210 g/kW.h
Packing Size(L*W*H): 1310*900*1400
Gross Weight: 510 Kg
Delivery Time: 7-15 working days
Payment Terms: T/T ,L/C
Cummins 6BTAA5.9-C130 Construction Diesel Engine
| General Information of Cummins 6BTAA5.9-C130 Construction Diesel Engine | |
| Engine Model | 6BTAA5.9-C130 |
| Engine Type | 6 Cylinders, in Line |
| Displacement | 5.9 L |
| Bore*Stroke(mm) | 102 * 120 |
| Compression Ratio | 17.3 : 1 |
| Net Weight (with flywleel & alternator) | 450 Kg |
| Overall Diemension(L*W*H) | 867mm*544mm*988mm |
| Technical Specification of Cummins 6BTAA5.9-C130 Construction Diesel Engine | |
| Certification | Euro Ⅱ |
| Aspiration | Turbocharged-Intercooled |
| Fuel System | Direct Injection Pump |
| Electrical System(Starter Motor/Alternator) | 12V/24V |
| Lowest Starting Temp without auxiliary system | -12℃ |
| Cooling Method | Water Cooled |
| Performance Data of Cummins 6BTAA5.9-C130 Construction Diesel Engine | |
| Rated Power | 97 kW/130 HP |
| Rated Speed | 2200 rpm |
| Max.Torque/Speed | 580 N.m @ 1500 rpm |
| Fuel Consumption | 210 g/Kw.h |
| Max. Continuous Running Altitude | 2000 m |
Cummins Industrial Diesel Engine Model List:
| Cummins Diesel Engine Model List | ||
| Model | Rated power/Speed | PeakTorque/Speed |
| (kW/rpm) | (N.m/rpm) | |
| 4BT3.9-C80 | 60/2200 | 330/1500 |
| 4BT3.9-C100 | 74/2400 | 330/1500 |
| 4BT3.9-C105 | 77/2800 | 330/1500 |
| 4BTA3.9-C80 | 82/2200 | 360/1400 |
| 4BTA3.9-C100 | 74/2200 | 410/1500 |
| 4BTA3.9-C110 | 82/2200 | 460/1500 |
| 4BTA3.9-C125 | 93/2200 | 475/1500 |
| 4BTA3.9-C130 | 97/2500 | 475/1500 |
| 6BT5.9-C130 | 97/2200 | 560/1500 |
| 6BT5.9-C150 | 112/2400 | 580/1500 |
| 6BTA5.9-C150 | 112/2200 | 670/1300 |
| 6BTA5.9-C170 | 125/2300 | 630/1400 |
| 6BTA5.9-C180 | 132/2200 | 750/1300 |
| 6CTA8.3-C195 | 145/1900 | 820/1500 |
| 6CTA8.3-C215 | 160/2200 | 908/1500 |
| 6CTA8.3-C230 | 172/2200 | 1003/1500 |
| 6CTA8.3-C240 | 179/2200 | 1028/1500 |
| 6CTA8.3-C260 | 194/2200 | 1135/1500 |
| 6LTAA8.9-C295 | 220/2100 | 1350/1400 |
| 6LTAA8.9-C300 | 225/2200 | 1268/1000 |
| 6LTAA8.9-C325 | 239/2200 | 1250/1500 |
| 6LTAA8.9-C340 | 250/2200 | 1380/1500 |
| 6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Packaging & Delivery
Packaging Detail:
Packaged By Exporting plywood case,woooden.
Delivery Detail:
Shipped in 3-10 working days after yr advance payment
To assure it is the exact part you demand,
pls advise your machine brand & model, or offer the Part NO. Thank you!
