Xiangyang Xinsheng Power Technology Co.,Ltd.
Hope our service can make your working easy!
Place of Origin: | Xiangyang city in Hubei China |
Brand Name: | Cummins |
Certification: | ISO 9001:2008 |
Model Number: | 6CTA8.3-M188 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box with plastic bag inside |
Delivery Time: | 7 working days on receipt of yr advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 200 units / Per month |
Engine Type: | Marine Engine | Engine Model: | 6CTA8.3-M188 |
---|---|---|---|
Bore*Stroke: | 114mm*135mm | Fule: | Diesel |
Cylinder: | 6 | Certification: | ISO,CCS,CE |
Warranty: | 1 Year | Cell/Wsapp Number: | +86+15872306245 |
Condition: | Completely New From Cummins Original Factory |

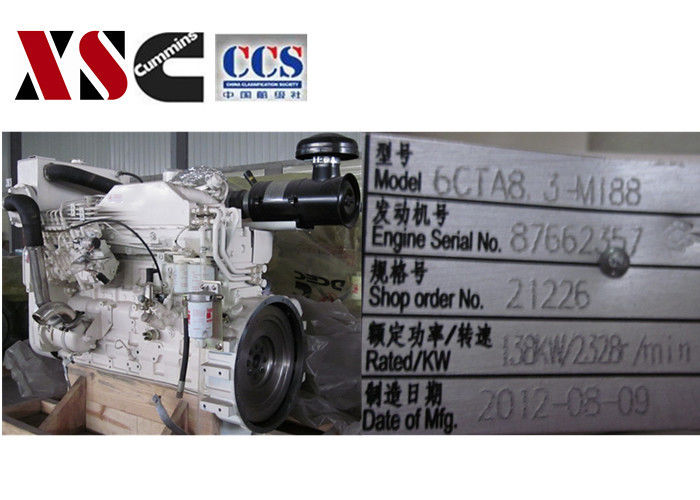

6CTA8.3- M188 Cummins Marine Diesel Engine
Xiangyang Xinsheng Power Technology Co.,Ltd.supplying 6CTA8.3-M188 diesel engine in marine engine
It is fine quality from original Cummins Factory and competitive price, accepted well around the world.
Specifications:
Dongfeng Cummins Marine 6CTA8.3-M188 Engine Parameters | |
Engine model | 6CTA8.3-M188 |
Engine series | Dongfeng Cummins 6C Series |
Engine manufacturer | Dongfeng Cummins Engine Co., Ltd |
Suitable for | Marine |
Air intake ways | Turbo charged, mid-cooling |
Cylinder number | 6 |
Fuel type | Diesel |
Engine cylinders position | 6 cylinders in line |
Displacement | 8.3L |
Max output power | 138kw |
Rated power speed | 2328RPM |
Max horse power | 188HP |
Max torque | 152N.m |
Max torque speed | 2400r/min |
The List of C Series Cummins Marine Diesel Engine:
Mode
|
kW / r/min | N.m / r/min | |
6CT8.3-GM115
|
115/1500 | 126/1500 | PB+GAC |
6CT8.3-GM129
|
129/1800 | 142/1800 | PB+GAC |
6CT8.3-GM155
|
155/1500 | 170/1500 | PB+GAC |
6CTA8.3GM155(IMO)
|
155/1500 | 170/1500 | PB+GAC |
6CTA8.3-GM175
|
175/1800 | 193/1800 | P7100+GAC |
6CTA8.3-M188
|
138/2328 | 152/2400 | PB+R801 |
6CTA8.3-M205
|
151/2328 | 166/2400 | PB+R801 |
6CTA8.3-M220
|
164/1800 | 180/1885 | PB+RSV |
6CTAA8.3-M260
|
190/2134 | 209/2200 | PW2000+RQV-K |
Performance
1 High Fuel Efficiency: Fewer fuel consumption at leading level than other competitive products.
2 The Turbocharger with wastegated design: Optimizes operation across the torque curve resulting in the excellent low-end torque.
3 Compacted yet durable and dependable engine: B series engine contains up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
4 Advanced design and manufacturing: make the engine delivers superior performance and lower cost than competitive engines.
5 Excellent cold start performance: with improved 6.6 KW starter and intake ajr heater.
6 Excellent performance and advantage: Adopt advance design to achieve higher horsepower and lower weight, horsepower per liter reached 22.4 KW/L.
Packaging & Delivery Details
1. Packed in wooden case, 1 unit/wooden case.
2. Packing sieze: 1100*900*1300mm
Delivery time: 7 work days for 1-10 units; 10 work days for 10-20 units.
