Xiangyang Xinsheng Power Technology Co.,Ltd.
Hope our service can make your working easy!
Place of Origin: | Xiangyang city, Hubei, China mainland |
Brand Name: | Cummins |
Certification: | ISO/16949, ISO14001 |
Model Number: | 6CTA8.3-M188 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden box with plastic bag inside |
Delivery Time: | 10 working days on receipt of yr advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 150 units / Per month |
Engine Mode: | 6CTA8.3-M188 | Condition: | New & Genuine |
---|---|---|---|
Start: | Electronic Start | Dimension: | 1560*900*1400mm |
Cold Style: | Water Cooled | Net Weight: | 700 KG |
Usage: | Boat | Certification: | CCS |

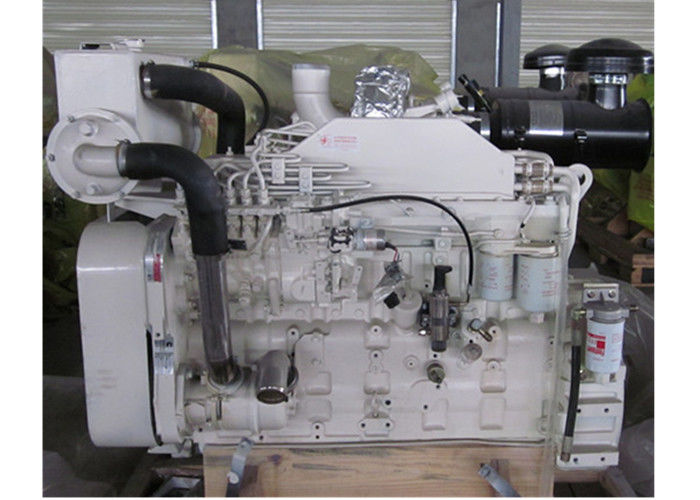

6CTA8.3- M188 138 KW Water Cooled Diesel Engine Electric Start For Fishing Boat
Basic Engine Data:
Cummin 6CTA8.3-M Marine Engine, 300HP 6CT Marine Engine For Fish Baots Or Commercial Boats
We supply the 6CTA8.3-M marine diesel engine from Original Cummins in Xiangyang city in China .
Specification for 6CTA8.3-M (250HP,260HP,300HP) marine engine:
1. Model 6CTA8.3-M188
2. Bore * Stroke 114mm * 135mm
3. Cylinders 6cylinders in line, Air-Intake,Turbocharged and Aftercooled
4. Displacement 8.3L
5. Cooling heat exchanger with sea water pump or salt water pump
6. exhaust type: water cooled exhaust manifold
7. Rotation Direction Counter-clockwise (Facing the flywheel)
8. Electric system: 12V or 24V
9. Fuel consumption :45L/Hour
10. Rated engine power : 250HP,260HP,300HP
11. Rated engine speed: 2200 rpm
12. Peak Torque: 950 N. M /1500rpm
13. Dimension: 1242mm*800mm*1197mm
14. Net weight: 800kg
15. match with gearbox ZF,twin disc,etc
The List of C Series Cummins Marine Diesel Engines:
Mode
|
kW / r/min | N.m / r/min | |
6CT8.3-GM115
|
115/1500 | 126/1500 | PB+GAC |
6CT8.3-GM129
|
129/1800 | 142/1800 | PB+GAC |
6CT8.3-GM155
|
155/1500 | 170/1500 | PB+GAC |
6CTA8.3GM155(IMO)
|
155/1500 | 170/1500 | PB+GAC |
6CTA8.3-GM175
|
175/1800 | 193/1800 | P7100+GAC |
6CTA8.3-M188
|
138/2328 | 152/2400 | PB+R801 |
6CTA8.3-M205
|
151/2328 | 166/2400 | PB+R801 |
6CTA8.3-M220
|
164/1800 | 180/1885 | PB+RSV |
6CTAA8.3-M260
|
190/2134 | 209/2200 | PW2000+RQV-K |
Performance:
1 High Fuel Efficiency: Fewer fuel consumption at leading level than other competitive products.
2 The Turbocharger with wastegated design: Optimizes operation across the torque curve resulting in the excellent low-end torque.
3 Compacted yet durable and dependable engine: B series engine contains up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
4 Advanced design and manufacturing: make the engine delivers superior performance and lower cost than competitive engines.
5 Excellent cold start performance: with improved 6.6 KW starter and intake ajr heater.
6 Excellent performance and advantage: Adopt advance design to achieve higher horsepower and lower weight, horsepower per liter reached 22.4 KW/L.

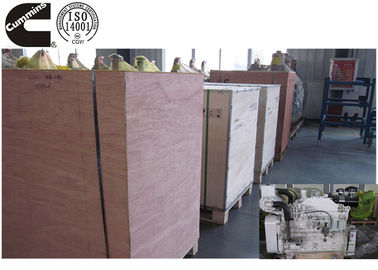

Packaging Details:
Wooden Box With Plastic Bag Inside
Delivery Detail:
Shipped in 10 work days after yr advance payment
