Cummins Marine Diesel Engine KTA19- M3 , Boat Motor
 |
Product Details:
| Place of Origin: | Xiangyang city in Hubei China |
| Brand Name: | Cummins |
| Certification: | ISO 9001:2008 |
| Model Number: | KTA19-M3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box or Custimized according to clients' request |
| Delivery Time: | 10 working days on receipt of yr advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 units / per month |
Detailed Product Description
| Type: | Diesel Engine | Aspiration: | Turbocharged |
|---|---|---|---|
| Cold Style: | Water Cooled | Displacement: | 19L |
| Stroke: | 4 | Use: | Marine Engine |
| Brand: | Cummins | Origin: | Xiangyang In Hubei China |
| Condition: | New & Original |

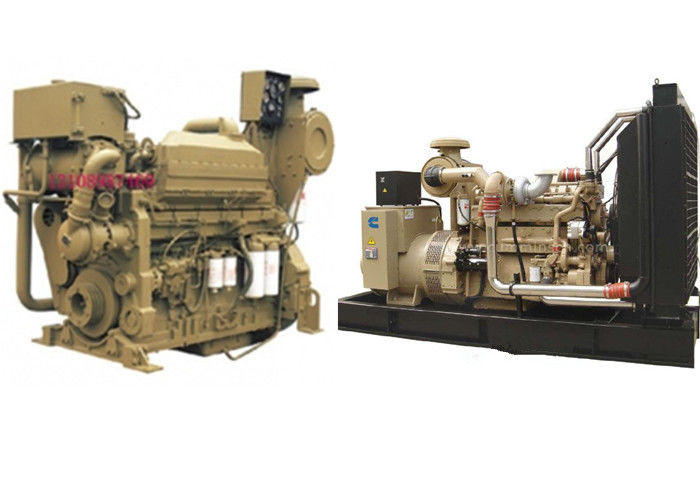

Cummins Marine Diesel Engine KTA19- M3 ,Boat Motor
Specification:
1. Model KTA19-M3
2. Bore * Stroke 159mm * 159mm
3.CKTA19-M Marine engine Cylinders 6cylinders in line, Air-Intake,Turbocharged and Aftercooled
4. Displacement 19L
5. Cooling heat exchanger with sea water pump or salt water pump
6. exhaust type: water cooled exhaust manifold
7. Rotation Direction Counter-clockwise (Facing the flywheel)
8. Electric system: 24V
9. Fuel consumption :119L/Hour
10. Rated engine power : 500HP,600HP,700HP
11. Rated engine speed: 1800/1800/2100 rpm
12. Peak Torque: 2830N. M /1300rpm
13. Dimension: 2150mm*1000mm *1650mm
14. Net weight: 2250kg
15. match with gearbox :advance.etc
Advantages :
1. Very low noise
2. A simple , compact and lightweight engine
3. Low fuel consumption
4. Original recoil starter marks the engine start easier, performs stably
| Cummins Marine Engine Model List | |||
| Engine Model | Rated Power (KW@RPM) | Standby Power (KW@RPM) | |
| B Series 4Cylinders 3.9L | 4BTA3.9-GM47 | 47/1500 | 52/1500 |
| 4BTA3.9-GM65 | 65/1800 | 71/1800 | |
| B Series 6Cylinders 5.9L | 6BT5.9-GM83 | 83/1500 | 92/1500 |
| 6BTA5.9-GM100 | 100/1500 | 110/1500 | |
| 6BTA5.9-GM120 | 120/1800 | 132/1800 | |
| 6BTAA5.9-GM115 | 120/1500 | 132/1500 | |
| 6BT5.9-M120 | 90/2200 | 100/2270 | |
| 6BTA5.9-M150 | 110/2200 | 120/2270 | |
| C Series 6Cylinders 8.3L | 6CT8.3-GM115 | 115/1500 | 126/1500 |
| 6CT8.3-GM129 | 129/1800 | 142/1800 | |
| 6CTA8.3-GM155(IMO II) | 155/1500 | 170/1500 | |
| 6CTA8.3-M205(IMO II) | 151/2328 | 166/2400 | |
| 6CTA8.3-M220(IMO II) | 164/1800 | 180/1885 | |
| 6CTAA8.3-M260 | 190/2134 | 209/2200 | |
| L Series 6Cylinders 8.9L | 6LTAA8.9-GM200(IMO II) | 200/1500 | 220/1500 |
| 6LTAA8.9-GM215(IMO II) | 215/1800 | 237/1800 | |
| 6LTAA8.9-M300 | 224/1800 | 245/1885 | |
| 6LTAA8.9-M315 | 230/2134 | 253/2200 | |
| Engine Model | Rated Power (KW@RPM) | Certificates | |
| N855 Series 6Cylinders 14L | NT855-M | 201/1800 | CCS |
| NT855-M | 224/1800 | CCS | |
| NT855-M | 179/1800 | CCS | |
| NTA855-M | 298/2100 | CCS | |
| NTA855-M | 261/1800 | CCS | |
| NTA855-M | 336/1800 | CCS | |
| NTA855-M | 298/2100 | CCS | |
| NTA855-M | 298/1800 | CCS | |
| K19 Series 6Cylinders 19L | KTA19-M | 351/1800 | CCS |
| KTA19-M | 373/1800 | CCS | |
| KT19-M | 317/1800 | CCS | |
| KTA19-M3 | 447/1800 | CCS | |
| KTA19-M | 410/2100 | CCS | |
| KTA19-M3 | 477/1800 | CCS | |
| KTA19-M4 | 522/2100 | CCS | |
| KTA19-M | 351/1800 | CCS | |
| KTA19-Mb3 | 407/1744 | CCAS | |
| KT19-M | 317/1800 | CCS | |
| KTA19-M | 373/1800 | CCS | |
| K38 Series 12Cylinders 38L | KT38-M | 596/1800 | CCS |
| KTA38-M0 | 671/1800 | CCS | |
| KTA38-M1 | 746/1800 | CCS | |
| KT38-M | 582/1800 | CCS | |
| KTA38-M2 | 895/1800 | CCS | |
Packaging & Delivery Details:
1. Packed in wooden case, 1 unit/wooden case.
2. Packing sieze: 1100*900*1300mm
Delivery time: 7 work days for 1-10 units; 10 work days for 10-20 units.
