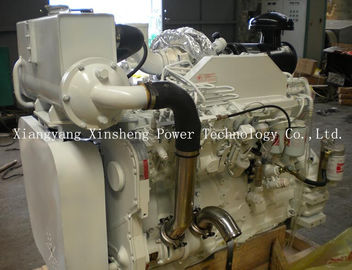

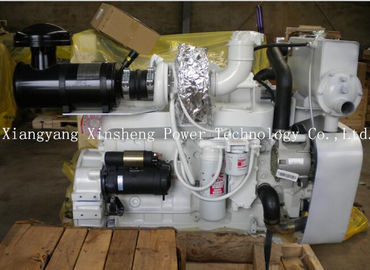

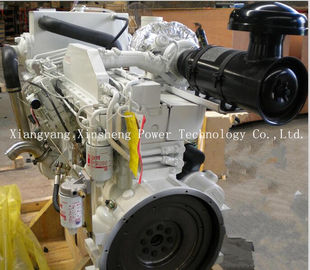

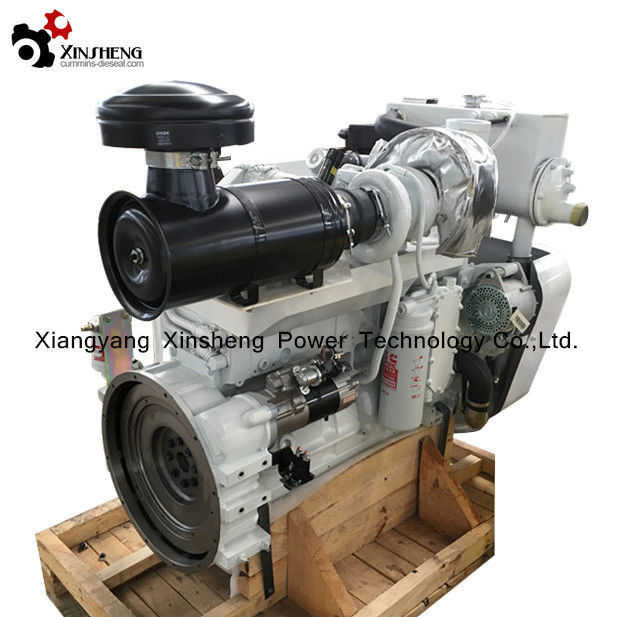

CCS Certificate 6CTA8.3-M220 DCEC Cummins Marine Propulsion Diesel Engine 220HP Low Consumption
 |
Product Details:
| Place of Origin: | Hubei Province ,China ( mainland） |
| Brand Name: | Dongfeng Cummins |
| Certification: | ISO 14001:2004 |
| Model Number: | 6CTA8.3-M220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box with plastic bag inside or Customed as client's request |
| Delivery Time: | 5-7 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per month |
Detailed Product Description
| Engine Type: | Fuel Engine | Usage: | Marine Engine(Main Power) |
|---|---|---|---|
| Rated Power: | 164KW/1800RPM | Displacement: | 8.3L |
| Cylinder: | 6 In-line | Cooling Type: | Water Cooling |
| Start Way: | Electric Start | Stroke: | 4 |
CCS Certificate 6CTA8.3-M220 DCEC Cummins Marine Propulsion Diesel Engine 220HP Low Consumption
1. Model :6CTA8.3-M220
2. Bore * Stroke: 114mm * 135mm
3. cummins 6CTA8.3-M Marine engine Cylinders 6cylinders in line, Air-Intake,Turbocharged and Aftercooled
4. Displacement: 8.3L
5. Cooling heat exchanger with sea water pump or salt water pump
6. exhaust type: water cooled exhaust manifold
7. Rotation Direction Counter-clockwise (Facing the flywheel)
8. Electric system: 12V or 24V
9. Fuel consumption :45L/Hour
10. Rated engine power : 220HP
11. Rated engine speed: 1800 rpm
12. Peak Torque: 180N. M /1885rpm
13. Dimension: 1242mm*800mm*1197mm
14. Net weight: 800kg
15. match with gearbox ZF,twin disc,etc
| marine main engine | ||||
| Model | Rated Power (kw/rpm) | Max Power (kw/rpm) | Intake Way | |
| 6BT5.9-M120 | 90/2200 | 100/2200 | Turbocharged | |
| 6BTA5.9-M150 | 110/2200 | 120/2200 | Turbocharged and intercooled | |
| 6CTA8.3-M188 | 138/2328 | 152/2328 | Turbocharged and intercooled | |
| 6CTA8.3-M205 | 151/2328 | 166/2328 | Turbocharged and intercooled | |
| 6CTA8.3-M220 | 164/1800 | 180/1800 | Turbocharged and intercooled | |
| 6CTAA8.3-M260 | 190/2134 | 209/2134 | Turbocharged and air to air intercooled | |
| 6LTAA8.9-M300 | 224/1800 | 245/1800 | Turbocharged and air to air intercooled | |
| 6LTAA8.9-M315 | 230/2134 | 253/2134 | Turbocharged and air to air intercooled | |
| Note:All the above engine model have got the type approval certification of CCS.Some have procured IMO emission certification | ||||
Diesel Generator For Marine:
| Engine model | FR | Advertised power(kw) | Advertised speed(r/min) | Max power(kw) | Aspiration | |
| auxiliary powerplant | 4BTA3.9-GM47 | FR92492 | 47 | 1500 | 52 | Turbocharged and aftercooled |
| 6BT5,9-GM83 | FR92305 | 83 | 1500 | 92 | Turbocharged | |
| 6BTA5.9-GM100 | FR92068 | 100 | 1500 | 110 | Turbocharged and aftercooled | |
| 6BTAA5.9-GM115 | FR92437 | 115 | 1500 | 127 | Turbocharged and air cooled | |
| 6CT8.3-GM115 | FR92221 | 115 | 1500 | 127 | Turbocharged | |
| 6CTA8.3-GM155 | FR92118 | 155 | 1500 | 170 | Turbocharged and aftercooled | |
| 6CTA8.3-GM155(IMO) | FR92119 | 155 | 1500 | 170 | Turbocharged and aftercooled | |
| 6LTAA8.9-GM200(IMO) | FR92710 | 200 | 1500 | 220 | Turbocharged and air cooled | |
| 4BTA3.9-GM65 | FR92342 | 65 | 1800 | 71 | Turbocharged and aftercooled | |
| 6BT5.9-GM100 | FR92068 | 100 | 1800 | 110 | Turbocharged | |
| 6BTA5.9-GM120 | FR92438 | 120 | 1800 | 132 | Turbocharged and aftercooled | |
| 6CT8.3-GM129 | FR92222 | 129 | 1800 | 142 | Turbocharged | |
| 6CTA8.3-GM175(IMO) | FR92184 | 175 | 1800 | 193 | Turbocharged and aftercooled | |
| 6LTAA8.9-GM215(IMO) | FR92290 | 215 | 1800 | 237 | Turbocharged and air cooled | |
| main powerplant | 6BT5.9-M120 | FR91410 | 90 | 2200 | 100 | Turbocharged |
| 6BTA5.9-M150 | FR91411 | 110 | 2200 | 120 | Turbocharged and aftercooled | |
| 6CTA8.3-M188 | FR91943 | 138 | 2328 | 152 | Turbocharged and aftercooled | |
| 6CTA8.3-M205 | FR91944 | 151 | 2328 | 166 | Turbocharged and aftercooled | |
| 6CTA8.3-M220 | FR92809 | 164 | 1800 | 180 | Turbocharged and aftercooled | |
| 6CTAA8.3-M260 | FR92292 | 190 | 2134 | 209 | Turbocharged and air cooled | |
| 6LTAA8.3-M300 | FR92926 | 224 | 1800 | 245 | Turbocharged and air cooled | |
| 6LTAA8.9-M315 | FR92291 | 230 | 2134 | 253 | Turbocharged and air cooled |
