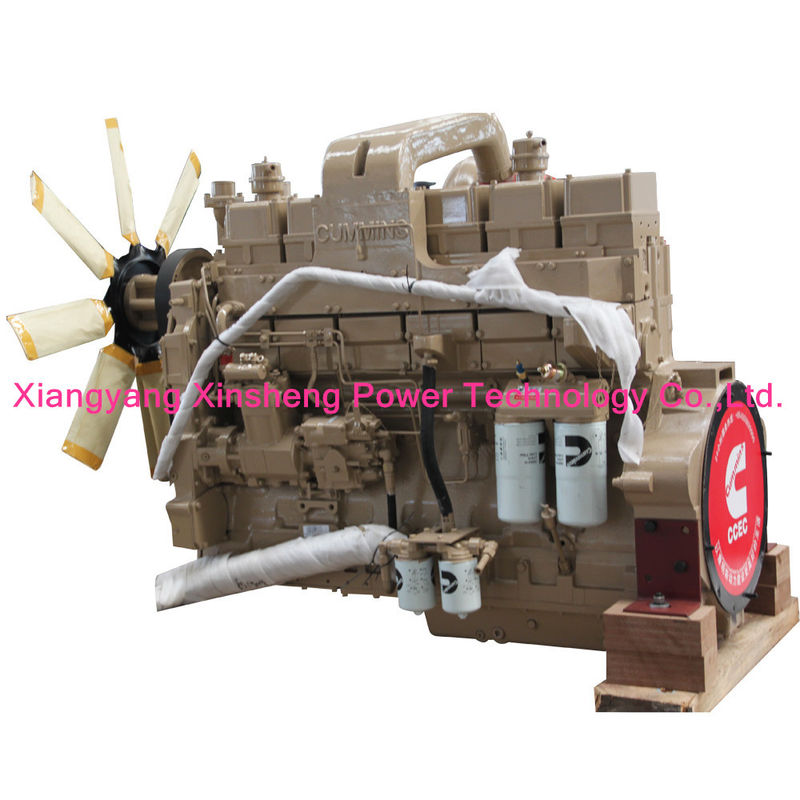

KT19-C450 CCEC Chongqing Cummings Diesel Engine For Water Pump and Industry machinery
 |
Product Details:
| Place of Origin: | Chongqing city, China |
| Brand Name: | CCEC Cummins |
| Certification: | ISO9001:2008 |
| Model Number: | KT19-C450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Cummins package,Netural Package or as customer's request |
| Delivery Time: | 15 workingdays |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 200 sets per month |
Detailed Product Description
| Type: | Diesel Engine | Condition: | New & Cummins Original Factory |
|---|---|---|---|
| Displacement: | 19L | Power / Speed: | 335KW /2100 RPM |
| Max Torque: | 1830N.M/1500RPM | Strokes: | 4 |
| Cylinders: | 6 In-line | Usage: | Industrial Machines/Water Pumps |
| Start Type: | Electric Start | Cooling: | Water Cold |
KT19-C450 CCEC Chongqing Cummings Diesel Engine For Water Pump and Industry machinery
Specification:
| General Technical Specification of Cummins KT19-C450 diesel engine | |
| Engine type | Vertical In-line, 4 stroke. |
| Cylinder number | 6 cylinders |
| Displacement | 19 L |
| Bore*Stroke | 159*159 mm |
| Aspiration | Turbocharged |
| Combustion type | Direct injection |
| Rated power | 335 kw |
| Rated Speed | 2100 r/min |
| Dry weight | 1700 kg |
| Overall Dimension | 1574*805*1371 mm |
Other Cummins Industry Models:
| Engine Model | SO. NO. |
Power kW/r/min |
TorqueN.m/r/min |
| KT38-P1000 | SO66188 | 746/1800(Max Power) | |
| KTA38-P1200 | SO66189 | 895/1800(Max Power) | |
| KTA38-P1400 | SO66190 | 1045/1800(Max Power) | |
| NT855-C280 | SO13294 | 184/1900 | 1061/1300 |
| NTA855-C310 | SO13310 | 231/2100 | 1261/1400 |
| NTA855-C360 | SO13284 | 269/2100 | 1464/1400 |
| NTA855-C360 | SO13516 | 269/2100 | 1464/1400 |
| NTA855-C360 | SO13730 | 269/1800 | 1464/1300 |
| NTA855-C400 | SO13244 | 298/2100 | 1559/1500 |
| KT19C450 | SO40069 | 335/2100 | 1830/1500 |
| KT19C450 | SO40138 | 335/2100 | 1830/1500 |
| KT19C450 | SO40223 | 335/2100 | 1830/1500 |
| KT19C450 | SO40342 | 335/2100 | 1830/1500 |
| KTA19-C525 | SO40141 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40278 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40284 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40330 | 392/2100 | 2136/1500 |
| KTA19-C525S10 | SO40389 | 392/2100 | 2136/1500 |
| KTA19-C600 | SO40216 | 448/2100 | 2237/1500 |
| QSK19-C760 | SO41020 | 567/2100 | 3085/1500 |
| KTA38-C1050 | SO60202 | 783/2100 | 4068/1500 |
| KTA38-C1200 | SO60193 | 854/1900 | 4475/1500 |
| KTA38-C1200 | SO60146 | 895/2100 | 4475/1500 |
| KTA38-C1400 | SO60279 | 1045/1800 | 4550/1500 |
| KTA50-C1600 | SO60225 | 1194/2100 | 5966/1500 |
| KTTA50-C2000 | SO60255 | 1492/1900 | 7864/1500 |
| Engine Model | SO. NO. |
Power kW/r/min |
Torque N.m/r/min |
| KTA19-C525 | SO40009 | 392/2100 | 2170/1300 |
| KTA19-C525 | SO40057 | 373/2100 | 1870/1500 |
| KT19-C450 | SO40155 | 335/2100 | 1830/1500 |
| KTA19-C525 | SO40268 | 392/2100 | 2237/1300 |
| KTA19-C525S10 | SO40346 | 373/2100 | 1870/1500 |
| KTA19-C525S10 | SO40377 | 392/2100 | 2237/1300 |
| KTA19-C525S10 | SO40380 | 392/2100 | 2237/1300 |
| KTA19-C600S10 | SO40399 | 448/2100 | 2237/1300 |
| KTTA19-C700 | SO40410 | 522/2100 | 2730/1400 |
| KTTA19-C700 | SO40427 | 522/2100 | 2730/1400 |
| QSK19-C760 | SO41015 | 522/2100 | 2480/1500 |
| NT855-C280 | SO10002 | 175/1800 | 1078/1250 |
| NTA855-C360 | SO10003 | 257/2000 | 1509/1400 |
| NT855-C280-T180 | SO10022 | 149/1850 | 923/1250 |
| NT855-C280 | SO10060 | 187/1850 | 1131/1200 |
| NTC-290 | SO10092 | 216/2100 | 1261/1300 |
| NTA855-C360 | SO10098 | 268/2100 | 1464/1500 |
| NT855-C310 | SO10106 | 231/2100 | 1261/1500 |
| NT855-C280 | SO10109 | 185/2100 | 1097/1500 |
| NT855-C280 | SO10122 | 142/1850 |
877/1250 |
Packaging & Delivery
Packaging Detail:
Packaged By Exporting plywood case,woooden.
Delivery Detail:
Shipped in 15 working days after yr advance payment
