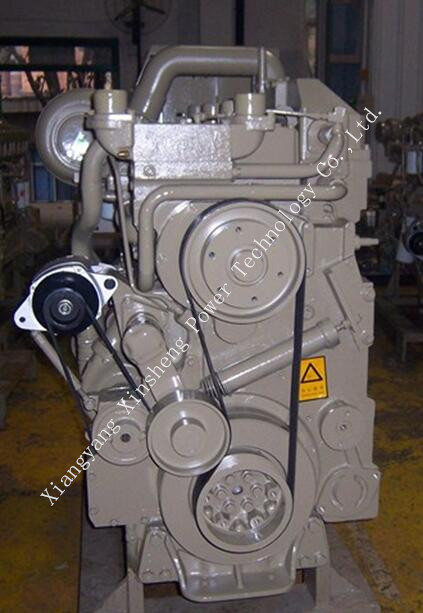

Original Cummins KTA19-G2 Stationary Diesel Engine for 50HZ or 60HZ Generator Set

Product Details:

Place of Origin:	Chongqing city,China Mainland
Brand Name:	CCEC Cummins
Certification:	ISO14001
Model Number:	KTA19-G2

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box with plastic bag inside or Custimized as client's request
Delivery Time:	25 working days on reciept of yr advance payment
Supply Ability:	200 units/per month

Contact Now

Detailed Product Description

Brand:	CCEC Cummins	Engine Model:	KTA19-G2
Fuel:	Diesel	Rated Power:	336KVA
Speed:	1500 RPM	Output Type:	AC Three Phase

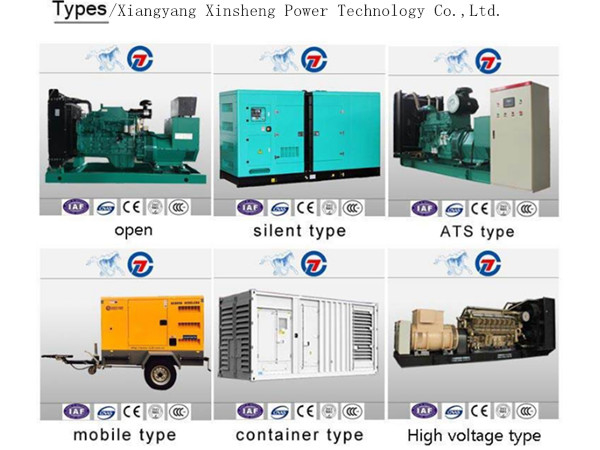

Optional:	Open/Silent/Mobile/Container	Frequency:	50HZ/60HZ
Engine Condition:	New From Cummins Original Factory

Original Cummins KTA19-G2 Stationary Diesel Engine for 50HZ or 60HZ Generator Set

1. Engine

Engine Brand / Model	USA CMS /KTA19-G2
Output Power	336kW/12h ;369kW/1h
Rated Speed	1500 rpm
Cylinder Number & Arrangement:	"L" type, in line6-cylinder
Cycle	4-Cycle
Aspiration	Turbo Air/Air Intercooled
Fuel System	Direct Injection
Bore × Stroke	159×159(mm)
Displacement	18.9 L
Governor Type	Electronic Governor
Cooling System	Closed Forced Water Circulation Cooling
Fuel Consumption	206 g/kw.h
Total lubrication capacity	50L
Starting Method	DC24V electrical starting

2. Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	300Kw
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

3. Control Panel

Brand

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Original Cummins KTA19-G2 Stationary Diesel Engine for 50HZ or 60HZ Generator Set
4 Optional-addtional parts

Engine	Fuel System	Cooling system	Exhaust system
Coolant Heater Lube oil heater Electronic governor Engine oil temperature	External Tank Water Separator	50-60 Radiator, Remote radiator Cooling tower	Heavy Duty air filter Silencer Enclosures
Alternator	Control System	Others	Voltage Connections
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling	Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet	Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts	480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available

The list of Cummins Genset Engine Models:

Mode	Rated Power(kw/rpm)	Brand
4B3.9-G1	24/1500	Cummins
4B3.9-G2	24/1500	Cummins
4BT3.9-G1	36/1500	Cummins
4BT3.9-G2	36/1500	Cummins
4BTA3.9-G2	50/1500	Cummins
4BTA3.9-G2	58/1500	Cummins
4BTA3.9-G11	67/1500	Cummins
6BT5.9-G1	86/1500	Cummins
6BT5.9-G2	96/1500	Cummins
6BTA5.9-G2	106/1500	Cummins
6BTAA5.9-G2	120/1500	Cummins
6BTAA5.9-G12	132/1800	Cummins
6CTA8.3-G1	163/1500	Cummins
6CTA8.3-G2	170/1800	Cummins
6CTAA8.3-G2	183/1500	Cummins
6LTAA8.9-G2	220/1500	Cummins
6ZTAA13-G2	390/1800	Cummins
6ZTAA13-G3	340/1800	Cummins
QSZ13-G2	500/1500	Cummins

Original Cummins KTA19-G2 Stationary Diesel Engine for 50HZ or 60HZ Generator Set

Payment:

T/T, 30% deposit, 70% will be payed before delivery

T/T, 30% deposit , 70% L/C at sight

100% L/C at sight

We can provide ORIGINAL CUMMINS engines used for Industry, Bus, Marine, Generator Set and water pump. More details, please contact us via email and call. Thanks !
