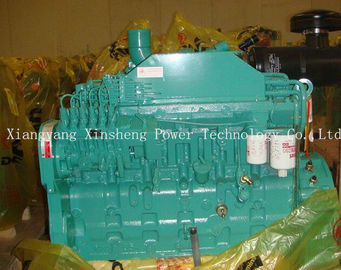

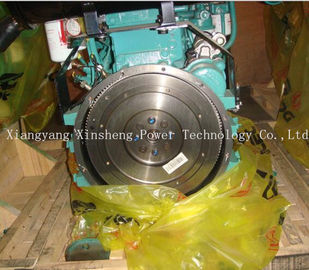

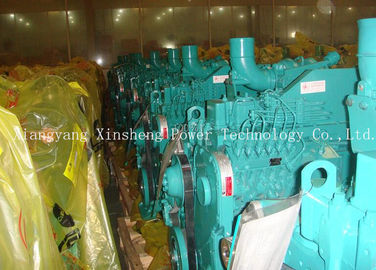

Silent Type 6CTA 8.3- G2 DCEC CumminsTurbocharged Diesel Engine For 50Hz 200KVA Generator
 |
Product Details:
| Place of Origin: | Xiangyang City in Hubei China |
| Brand Name: | DCEC Cummins |
| Certification: | ISO14001:2004 |
| Model Number: | 6CTA 8.3- G2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case, neutral packaging or packaged as our customers' request |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 150 sets per month |
Detailed Product Description
| Type: | Fuel Engine | Usage: | Generator Set |
|---|---|---|---|
| Power: | 160KW/1500RPM | Cylinder: | 6 |
| Displacement: | 8.3L | Start: | Electric Start |
| Cooling Type: | Water Cooling |
Silent Type 6CTA 8.3- G2 DCEC CumminsTurbocharged Diesel Engine For 50Hz 200KVA Generator
Data Sheet of 6CTA8.3-G2:
| General Technical Specification of Cummins 6CTA8.3-G2 diesel engine | |
| Engine type | Vertical In-line, 4 stroke. |
| Cylinder number | 6 cylinders |
| Displacement | 8.3 L |
| Bore*Stroke | 114*135 mm |
| Aspiration | Turbocharged & Intercooled |
| Combustion type | High-pressure common rail, direct injection |
| Rated power | 160 kw |
| Rated Speed | 1500 r/min |
| Dry weight | 650 kg |
| Overall Dimension | 1115*716*751 mm |
Engine Features:
1. Powered By DCEC ENGINE
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Generator Set List:
| Item | Model | Power/Speed(kw/rpm) | Remark |
| 1 | 4BT3.9-C80 | 60/2000 | Industrial Use |
| 2 | 4BT3.9-C100 | 75/2400 | |
| 3 | 4BT3.9-C105 | 77/2800 | |
| 4 | 4BTA3.9-C125 | 93/2200 | |
| 5 | 4BTA3.9-C130 | 97/2500 | |
| 6 | 4BTAA3.9-C115 | 95/2500 | |
| 7 | 4BTAA3.9-C125 | 93/2200 | |
| 8 | 6BT5.9-C150 | 112/2400 | |
| 9 | 6BTA5.9-C150 | 112/1800 | |
| 10 | 6BTA5.9-C170 | 125/2300 | |
| 11 | 6BTA5.9-C180 | 132/2200 | |
| 12 | 6BTAA5.9-C180 | 132/2200 | |
| 13 | 6CTA8.3-C215 | 160/2200 | |
| 14 | 6CTAA8.3-C215 | 160/2200 | |
| 15 | 6CTA8.3-C240 | 179/2200 | |
| 16 | 6CTA8.3-C260 | 194/2200 | |
| 17 | 6LTAA8.9-C325 | 239/2200 |

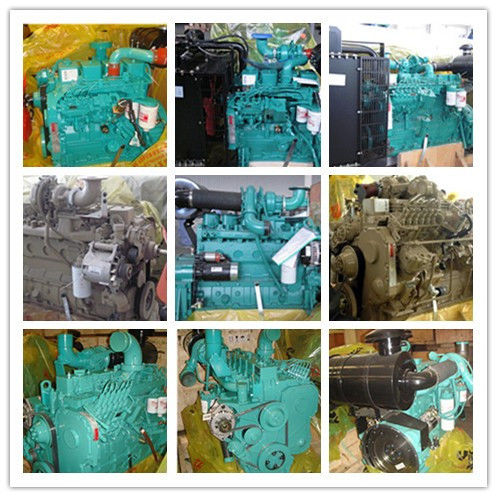

Other Engines we supply:
Packaging & Delivery
Packaging Details:
Engine Assembly standard wooden case, neutral packaging or packaged as our customers' requirements
Delivery Detail:
Shipped in 5-7 work days after recipt of yr advance
