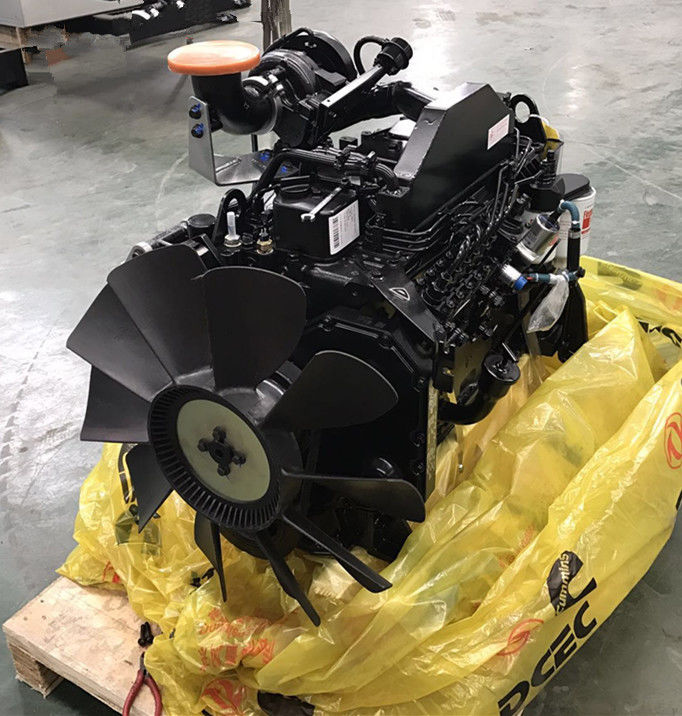

6 Cylinder Supercharged Diesel Engine
 |
Product Details:
| Place of Origin: | Hubei, China mainland |
| Brand Name: | Dongfeng Cummins |
| Certification: | ISO/16949, ISO14001 |
| Model Number: | 6BTA5.9-C180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wrap around with plastic bags firstly, and then reinforced with wooden case for outer packing. |
| Delivery Time: | 3-10 Working Days After Received Your Payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 Units Per Month |
Detailed Product Description
| Type: | Turbocharged | Rated Power: | 180HP |
|---|---|---|---|
| Condition: | New | Speed: | 2200RPM |
| Color: | Black | Fuel: | Diesel |
| Dimension(L*W*H): | 1100*765*985mm | Weight: | 550KG |
6 Cylinder 4 Stroke Turbocharged Cummins 6BT Diesel Engine 6BTA5.9-C180
Specifications:
| General of 6BT5.9-C180 Diesel Engine for Industry | |
| Displacement | 5.9L |
| Bore&Stroke | 102×120mm |
| Cylinders | 6 |
| Rated Power | 132kW/2500r/min |
| Weight Dry | 443kg |
| Aspiration | Turbocharged & Aftercooled |
| Pump Type | AD |
| Governor | RSV |
| Technical Specification of 6BT5.9-C180 Diesel Engine for Industry | |
| Instant inertia of rotational part(Without flywheel) | 0.25kg.m2 |
| Center Of gravity Distance From Front End Of Cylinder Body | 391mm |
| Center Of Gravity Distance Above Crank Centre Line | 140mm |
| Peak Torque | 630N.m/1500r/min |
Cummins Diesel Engine Model List:
| Cummins Diesel Engine Model List | ||
| Model | Rated power/Speed | PeakTorque/Speed |
| (kW/rpm) | (N.m/rpm) | |
| 4BT3.9-C80 | 60/2200 | 330/1500 |
| 4BT3.9-C100 | 74/2400 | 330/1500 |
| 4BT3.9-C105 | 77/2800 | 330/1500 |
| 4BTA3.9-C80 | 82/2200 | 360/1400 |
| 4BTA3.9-C100 | 74/2200 | 410/1500 |
| 4BTA3.9-C110 | 82/2200 | 460/1500 |
| 4BTA3.9-C125 | 93/2200 | 475/1500 |
| 4BTA3.9-C130 | 97/2500 | 475/1500 |
| 6BT5.9-C130 | 97/2200 | 560/1500 |
| 6BT5.9-C150 | 112/2400 | 580/1500 |
| 6BTA5.9-C150 | 112/2200 | 670/1300 |
| 6BTA5.9-C170 | 125/2300 | 630/1400 |
| 6BTA5.9-C180 | 132/2200 | 750/1300 |
| 6CTA8.3-C195 | 145/1900 | 820/1500 |
| 6CTA8.3-C215 | 160/2200 | 908/1500 |
| 6CTA8.3-C230 | 172/2200 | 1003/1500 |
| 6CTA8.3-C240 | 179/2200 | 1028/1500 |
| 6CTA8.3-C260 | 194/2200 | 1135/1500 |
| 6LTAA8.9-C295 | 220/2100 | 1350/1400 |
| 6LTAA8.9-C300 | 225/2200 | 1268/1000 |
| 6LTAA8.9-C325 | 239/2200 | 1250/1500 |
| 6LTAA8.9-C340 | 250/2200 | 1380/1500 |
| 6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Description:
B Series Diesel Engine:
1. High fuel efficiency.
2. Advanced design and manufacturing make the engine delivers superior performance and lower cost than competitive engines.
3. Compacted yet durable and dependable engine.
4. Excellent cold start performance with improved 6.6kW starter and intake air heater.
5. Excellent performance and advantage adopt advanced design to achieve higher horsepower and lower weight, horsepower per liter reached 22.4kW/L.
Packaging & Delivery
Packaging Details:
1. Packed in wooden case, 1 unit/wooden case.
2. Packing sieze: 1300*900*1300mm
Delivery Detail:
2-3 days for 1-10 units; 7-10 days for 10-20 units.
Our Service:
1. 100% finished products inspection before shipment. Beside customer's QC, we can help to do inspection and offer report.
2. We can palletize, make fumigation, supervise over loading, take loading photos for customers.
3. Offer CO, Form A, Form E, Form F and certificate legalized by concerned embassy.
4. One year warranty for after-service.
